Yashi Multi-functional High Light LCD Outdoor Advertising Digital Signage Player Return on a page
Control Software Return on a page

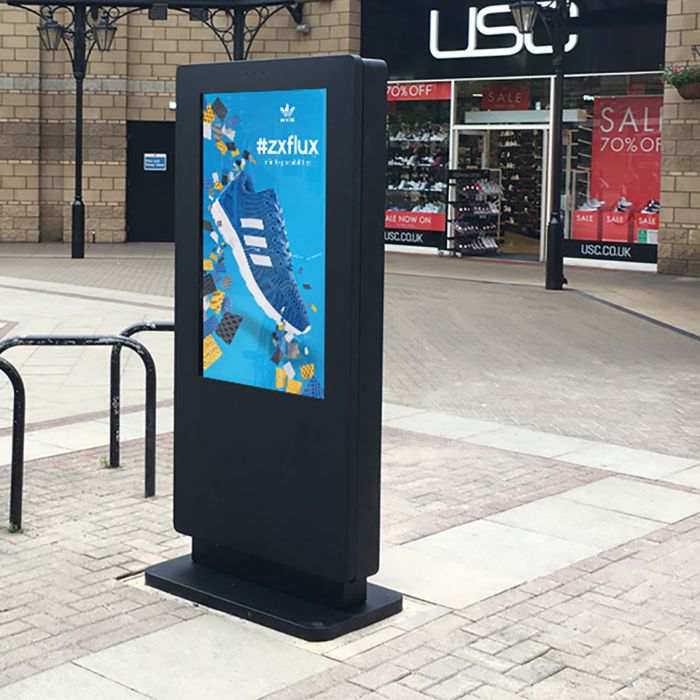

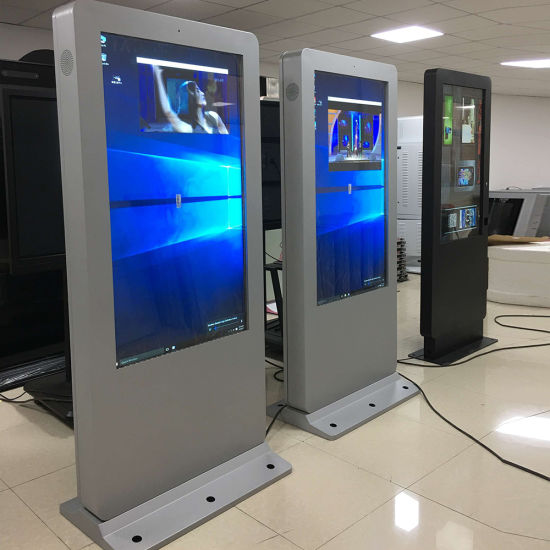

55 Inch WiFi touch screen weatherproof outdoor drive-thru interactive kiosk/standing digital signage
FOB Reference Price:Get Latest Price
US $3,000-8,000 / Unit | 1 Unit/Units (Min. Order)
Supply Ability:
200 Unit/Units per Week
Port:
Ningbo/Shanghai Port
Chat Now!
Seller Support:
Trade Assurance– To protect your orders from payment to delivery
Payment:
Shipping:
Less than Container Load (LCL) Service to US





Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Yashi
Model Number:
Yashi-C501
Type:
TFT
Application:
Outdoor
Panel Size:
681*1210mm
Max Resolution:
3840*2160
Viewing Angle:
178
Pixel Pitch:
0.63(H)*0.63(V)
Color:
16.7M
Contrast Ratio:
1400:1
Brightness:
2500~3500cd/m2, 2500-3500 nits
Response Time:
6ms
Input Voltage:
AC100~240V 50 /60 HZ
Item name:
55" Outdoor LED Big Digital Advertising Signage Kiosks
Display area:
681*1210mm
Panel type:
TFT LG Panel
Material:
Metal case+Aluminum frame+Tempered glass
Display scale:
16:9
Back-lit type:
LCD
Response time:
5MS
Network:
WIFI,LAN,3G,4G
Touch type:
Metal mesh sensor
Packaging & Delivery
Packaging Details
Optional Packing
1. Standard exported carton (honeycomb box) with foam inside
2. Wooden case with soft clothing i





Product Description



Specification
High Brightness Panel                   55'' stand outdoor LCD digital signage with 2000 high brightness
Size  55''(32inch-84inch optional)
Aspect Ratio 9:16
Resolution   1920*1080 Full HD
Brightness  2000 cd/
Contrast Ratio  3000:1
Viewing Angle   178° Horizontal / 178° Vertical tical
Working Parameter
Video Interface  VGA HDMI CVBS S-Video
Audio interface  AUDIO IN
Brightness Control  automatic optical sensor systems
Working Temperature -40 to +55
Working Humidity  5% to 100%
Power Source AC 108-115V,/AC 208-240 V Hz
Maximum Power  1.5 Kw
Waterproof Enclosure                   IP65 water-proof case
Protection Grade IP65
Machine size (W*H*D) 1980*740mm*255mm
G.W 220kg
Installation Type  Floor Standing
Glass 6mm laminated with anti-reflective safety glass
Temperature control system Integrated heater and air conditioner
Optional
1. Built-in PC
2. Touch screen ( IR touch and capacitive touch)
3. Remote information release system
4. Environmental monitoring system based on Internet
5. Anti-Graffiti Protection on enclosure
6. Customized casing color design and customized shap
